Latin America Technology

HATT

Helical Advanced Technology for Truck

Even Wear
Extended Life
Safety
Comfort

HATT 3+1

Helical Advanced Technology for Truck represents a breakthrough in belt package engineering. The 3+1 configuration adds a helical-wound nylon cap layer to the traditional 3-belt structure. A wider #1 belt ensures the carcass contour aligns with the tire's outer profile, improving structural integrity. A cushion between the #2 and #3 belts reduces rigidity, optimizing shoulder contact area and pressure distribution.

  • Less irregular wear through optimized footprint pressure
  • Dramatically extended tire life and better retreadability
  • Improved handling, safety, and comfort
  • Weld-free steel cords (3x7x0.22 HE / 3x7x0.20 HE) eliminate weak spots
  • Superior belt uniformity vs. older construction methods

Finite Element Method

See What Others Can't. Before a Single Tire Is Built.

Every Hanksugi tire is digitally stress-tested, thermally mapped, and structurally validated before it ever reaches the production floor.

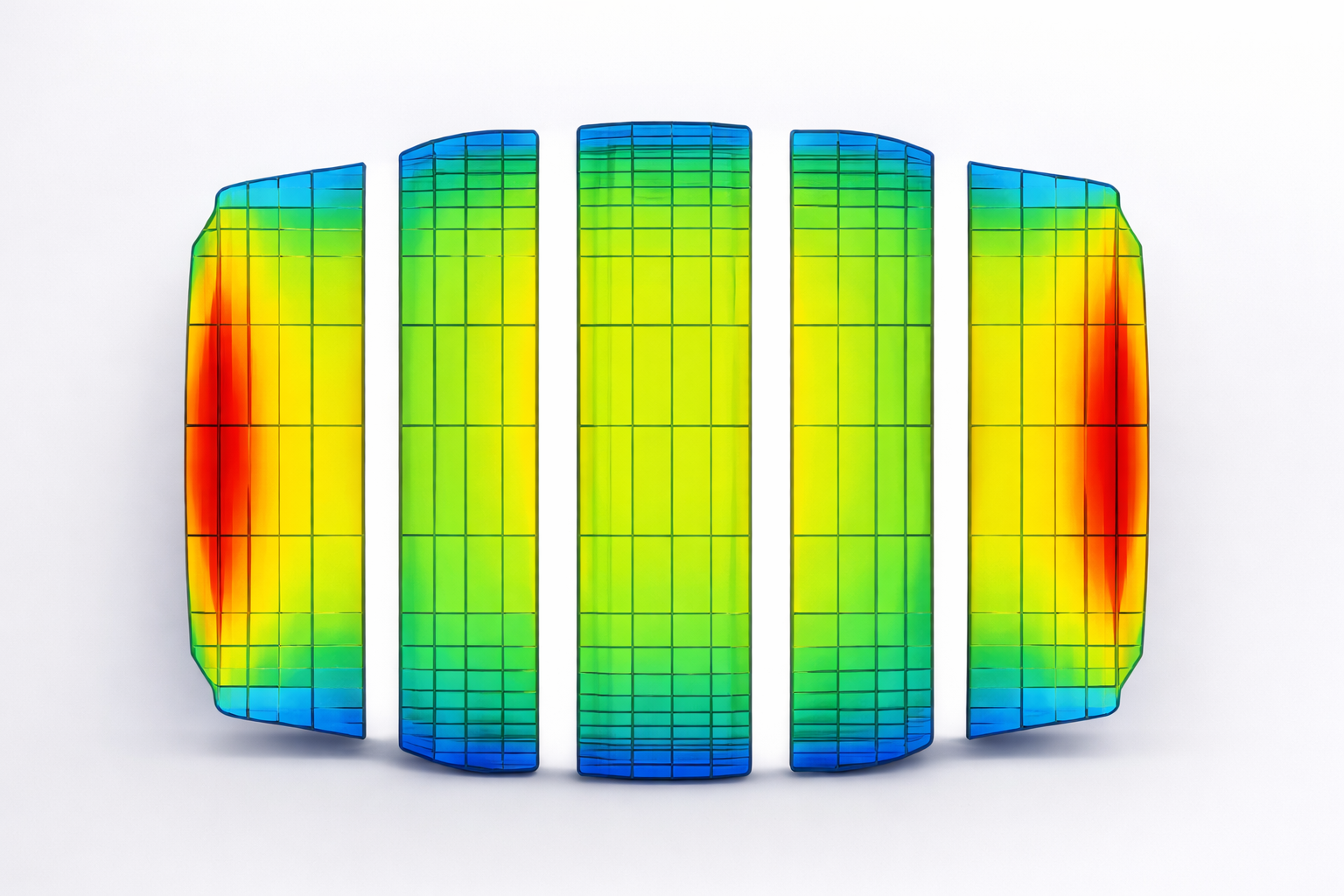

FEM Footprint Stress Analysis

Contact Pressure Analysis

Engineered in Pressure. Proven in Motion.

This digital stress map shows how force is distributed across each tread zone. Warmer areas indicate higher stress concentration. Cooler areas reveal lower load intensity.

By analyzing this footprint at a microscopic level, engineers fine-tune rib stiffness, shoulder support, and contact balance before production. The result is smarter load distribution and a tire engineered for stability and long-term wear.

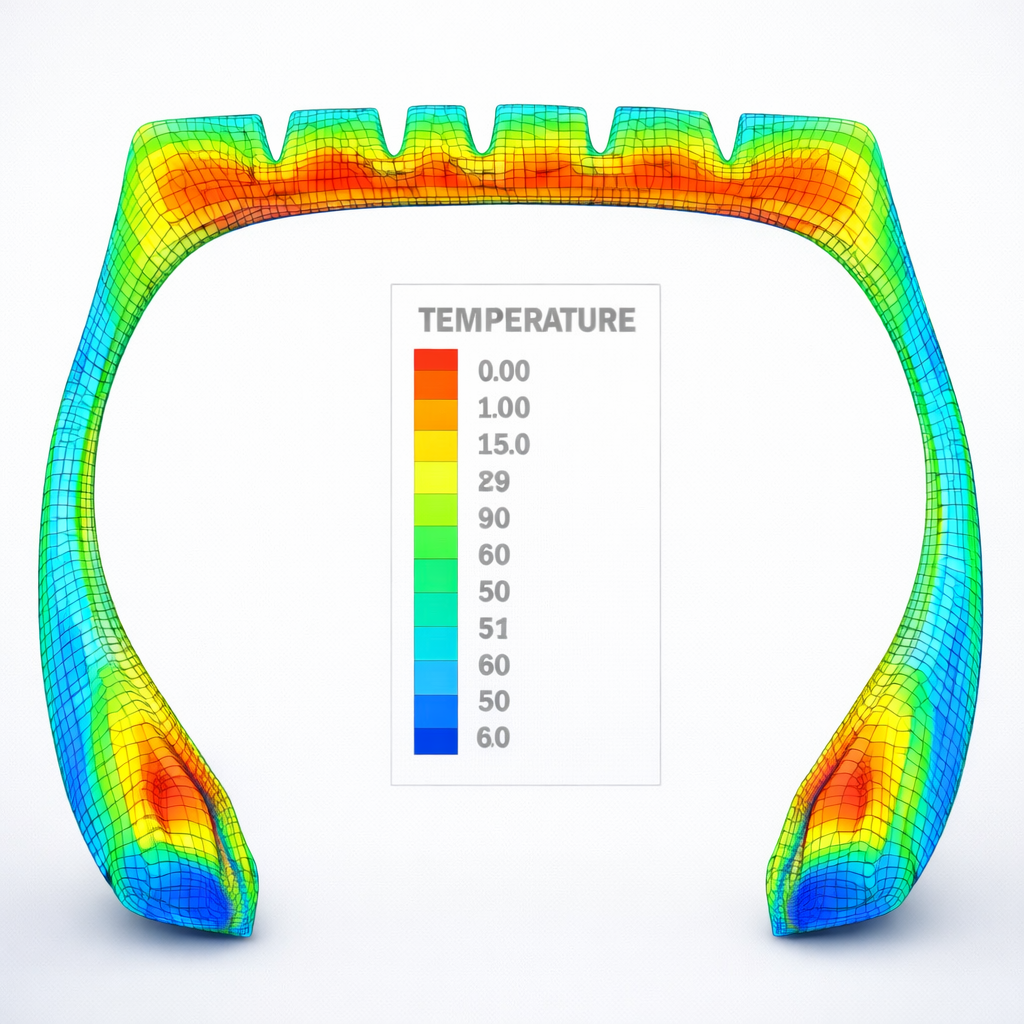

FEM Temperature Distribution

Thermal Simulation

Heat, Mapped with Precision.

Thermal simulation shows how temperature builds through the tire cross-section under load. Warmer zones near crown and bead reveal where heat concentration is highest during flex and compression.

Engineers refine material placement, structural geometry, and cooling behavior at the design stage. Better thermal balance, reduced heat in critical zones, and a casing built for durability at sustained speed.

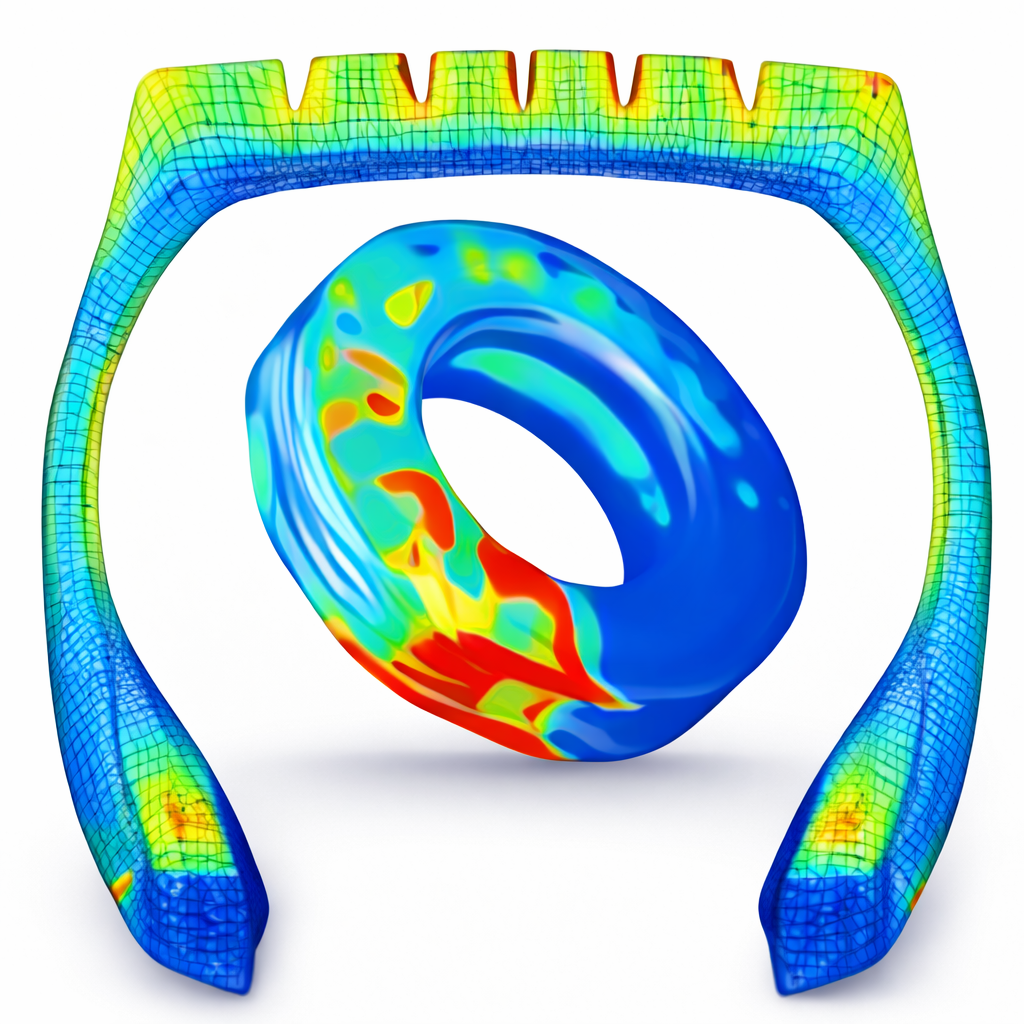

FEM Dynamic Deformation Analysis

Structural Dynamics

Designed to Dissipate Stress Before It Becomes Heat.

The outer cross-section shows stress traveling through the casing under load. The inner 3D ring visualizes behavior in motion — where forces concentrate, twist, and redistribute through each rotation.

Engineers refine sidewall geometry, tread support, and material distribution to reduce internal strain. A structure optimized for durability, stability, and thermal control at speed.

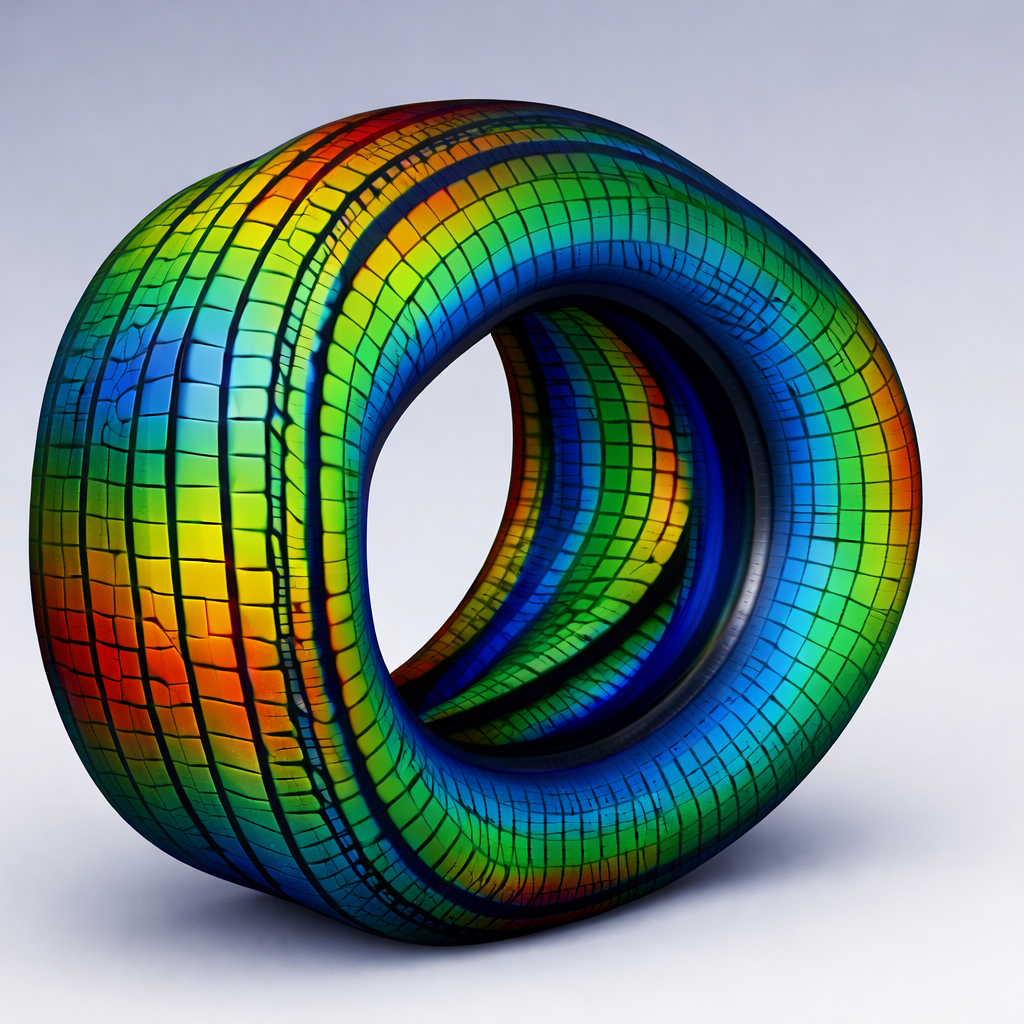

FEM Full Tire Structure Analysis

Full-Body Analysis

A Full-Structure View of Tire Stress.

This 3D simulation maps force across the entire tire body. Every color band reveals how the structure reacts as the tire supports weight, flexes through rotation, and manages pressure across all zones.

By modeling the whole tire, engineers optimize stiffness, balance deformation, and control stress flow before physical testing begins. A tire engineered for stable handling, better load control, and longer structural life.

Core Technologies

9 Innovations. One Tire.

Every Hanksugi LATAM tire is built with a suite of proprietary technologies, each engineered to solve a specific performance challenge.

3SB + ST
Three Sandwich Belts & Spiral Tech
  • Three sandwich belts combined with a Spiral 0° Belt for enhanced structural integrity
  • Wider #1 belt aligns carcass contour with tire profile, improving even wear
  • Cushion between #2 and #3 belts optimizes footprint contact pressure
  • Weld-free steel cords eliminate weak spots found in older constructions
  • Dramatically extends service life with superior retreadability
DLTC/HSCC
Dual-Layer Tread Compound with High Silica Composite
  • Two-layer tread design with high silica composite for superior wet grip
  • Low heat generation preserves rolling resistance and structural integrity
  • Better resistance and performance at low temperatures
  • Highly saturated surface maximizes mileage through dense, wear-resistant tread
  • Transforming groove technology maintains wet traction throughout tire life
3D SIM
3-Dimensional Numerical Simulation
  • Every tire digitally stress-tested and thermally mapped before production
  • FEA-optimized with silica dispersion and 0-degree belt layer alignment
  • Contact patch imaging, water evacuation, braking deformation, and thermal analysis
  • Validates performance under real-world conditions before a single tire is built
FRC
Full Rubberized Cords
  • Total compound penetration into the cord structure for maximum adhesion
  • Enhances casing resistance to fatigue under continuous load cycles
  • Improves body integrality — a key factor in retreadability and casing longevity
RSR
Rotated Shoulder Rib
  • Innovative shoulder tread contour distributes footprint contact pressure correctly
  • Improved abrasion uniformity reduces irregular wear across the tread face
  • Enhanced even wear and higher mileage through optimized pressure distribution
SHT
Super High Tensile Cord
  • High-strength steel wire construction for lower rolling resistance
  • Better vehicle handling and control at highway speeds
  • Enhances retreadability — cords maintain integrity through multiple lives
SSC
Series of Specific Compounds
  • Purpose-built compounds designed for each application and road condition
  • Optimized balance between mileage performance and regulatory labeling
  • Advanced silica dispersion for fuel efficiency across all compound variants
HBW
Hexagonal Bead Wire
  • Hexagonal shape provides high flexibility for easy mounting and fitting
  • Superior resistance to tensions during operation and high-load conditions
  • More retreadable — supports second and third tire lives
BWC
Bead Wrap Core
  • Increases body strength and structural resistance at the bead area
  • Protects the casing during the retread process
  • Better retreading performance for extended total tire lifecycle

Belt Package Construction

Engineered from the Inside Out

Uniform belt package. Deep under-tread for casing protection and superior retreadability.

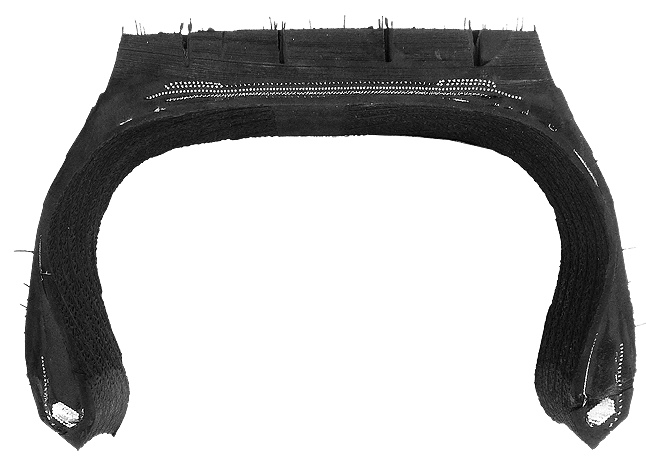

Hanksugi Cut Section
HANKSUGI 295/75R22.5

Hanksugi HATT

3SB + Spiral 0° Belt construction with weld-free steel cords (3x7x0.22 HE / 3x7x0.20 HE). Wider #1 belt aligns carcass contour with tire profile. Cushion between #2 and #3 belts optimizes shoulder pressure distribution. Deep under-tread layer protects the casing for 2nd and 3rd life retreading.

Weld-Free Steel Cords Uniform Belt + Deep Under-Tread Optimized Shoulder Pressure Full Rubberized Cords (FRC)

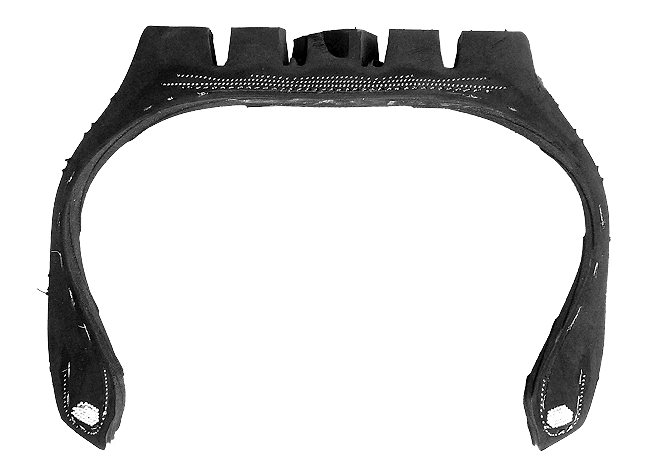

Competitor Cross Section A
COMPETITOR

Cross-Section Competitor A

Competitor cut section for comparison. Note the differences in belt layer uniformity and under-tread depth versus Hanksugi construction.

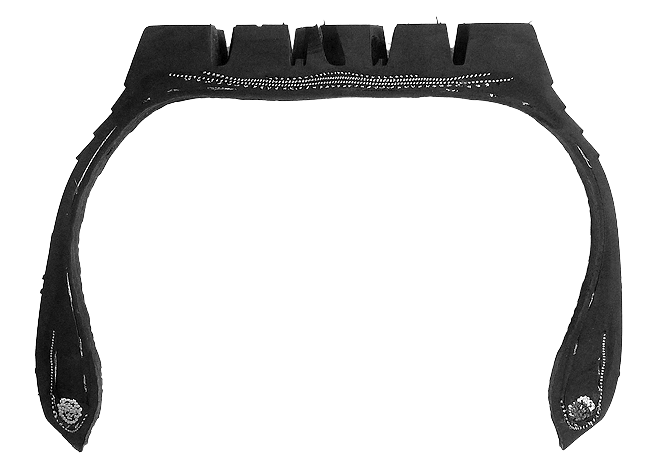

Competitor Cross Section B
COMPETITOR

Cross-Section Competitor B

Competitor belt package shows less uniformity in steel belt distribution and shallower under-tread rubber depth.

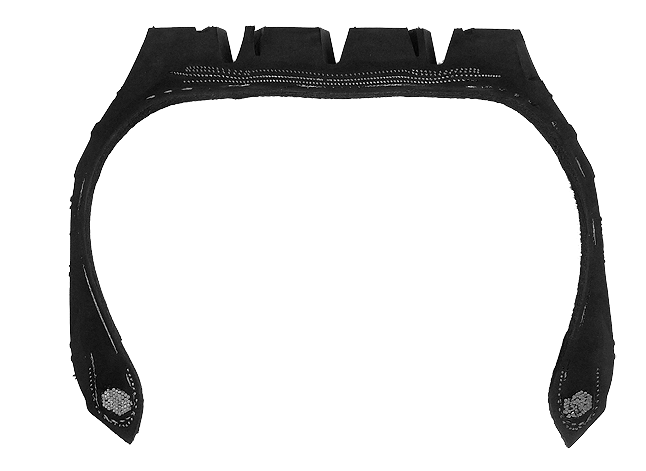

Competitor Cross Section C
COMPETITOR

Cross-Section Competitor C

Third competitor comparison showing variations in bead bundle construction and overall casing quality versus Hanksugi.

CUT SECTION COMPARISON
Competitor A

Competitor A
295/75R22.5

Competitor B

Competitor B
295/75R22.5

Competitor C

Competitor C
295/75R22.5

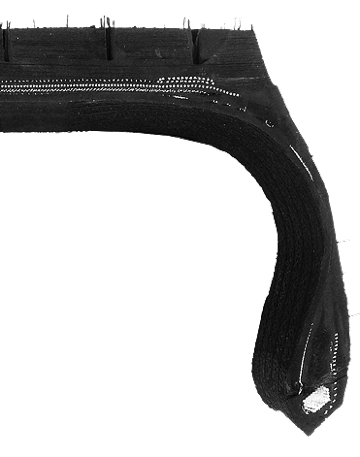

Hanksugi

HANKSUGI
295/75R22.5

Uniform Belt Deep Under-Tread Durable Bead

Performance Data

HATT 3+1 vs. 3+0 Technology

Comprehensive testing demonstrates measurable advantages across every key performance metric.

Comprehensive Performance

Indexed scores — higher is better

Mileage
HATT
120
3+0
110
Fuel Saving
HATT
110
3+0
110
Durability
HATT
110
3+0
110
HATT 3+1
3+0 Technology

Handling & Grip

Indexed scores — higher is better

Dry Handling
HATT
110
3+0
110
Wet Grip
HATT
110
3+0
110
Friction Resistance
HATT
120
3+0
100
HATT 3+1
3+0 Technology

Belt Package Evolution

The HATT 3+1 Advantage

The addition of a helical-wound nylon cap layer transforms the belt package, delivering superior stability and longevity.

Competitor

Standard Belt

Steel Belt 1
Rubber
Steel Belt 2
Rubber
Steel Belt 3

Traditional 3-belt steel construction without helical reinforcement. Welding points in steel cords create potential weak spots. Less uniform belt distribution.

Previous Generation

3+0 Belt

Steel Belt 1
Rubber
Steel Belt 2
Rubber
Steel Belt 3

Previous 3-belt configuration with 3x7x0.20 HE steel cords and enhanced rubber compounds. Good performance but without spiral reinforcement.

Hanksugi New

HATT 3+1

Spiral 0° Belt
Wide Belt 1
Cushion
Steel Belt 2
Cushion
Steel Belt 3

3 sandwich belts + Spiral 0° cap with weld-free cords (3x7x0.22 HE). Wider #1 belt for structural integrity. Cushion layers optimize pressure distribution.

Ready for HATT Performance?

Contact us to learn more about our HATT-equipped tires for the Latin American market.
