Heavy-duty all-position and drive tires engineered for dump trucks, concrete mixers, refuse vehicles, and vocational fleets with extreme load demands.
Vocational trucking encompasses the specialized commercial vehicles that build, supply, and maintain the infrastructure of daily life. Dump trucks hauling aggregate for road construction. Concrete mixer trucks delivering ready-mix to building sites. Refuse and garbage trucks collecting waste on residential and commercial routes. Utility trucks servicing power lines and communications infrastructure. Fire apparatus responding to emergencies. These vehicles operate in environments that are fundamentally different from the highway corridors that long haul and regional trucks travel, and they need tires engineered for their specific demands.
The defining characteristic of vocational truck operations is the combination of extreme loads with punishing low-speed maneuvering. A loaded dump truck at 80,000 lbs GVW making tight turns on a construction site puts more stress on its tires in a single turn than a long haul truck does in 100 miles of straight highway driving. The tire sidewalls flex under the massive lateral load, the tread scrubs sideways against the pavement surface, and the entire casing absorbs forces that would be unthinkable in highway service. Add curb strikes from navigating narrow residential streets, the thermal cycling from hundreds of stops per day, and the debris exposure from job sites, and it becomes clear why standard highway tires fail rapidly in vocational service.
Vocational tires address these demands through three engineering strategies. First, stronger casing construction with additional body plies and higher-gauge steel belts that support the extreme loads without excessive deflection. Second, harder, more durable tread compounds that resist the lateral scrubbing forces of tight turns and the abrasion from rough surfaces. Third, reinforced sidewalls with additional rubber thickness and bead area protection that absorb curb strikes and impact damage without compromising casing integrity. These features increase the tire's weight and rolling resistance compared to highway tires, but in vocational service where average speeds are low and loads are high, the durability trade-off is necessary and cost-effective.
GAWR (Gross Axle Weight Rating) is the critical specification for vocational tire selection. Every axle on a vocational vehicle has a maximum weight rating set by the manufacturer, and the tires on that axle must be collectively rated to carry that weight. For a typical tandem rear axle dump truck with a GAWR of 40,000 lbs per axle and dual tires, each tire must be rated for at least 10,000 lbs at the operating inflation pressure. Selecting tires with load ratings below the actual operating weight causes overheating, accelerated wear, and structural failure. The load rating of a tire varies with inflation pressure -- the same tire carries more weight at 120 PSI than at 100 PSI. Always cross-reference your actual axle weights (not just the GAWR) against the load/inflation tables for your specific tire model to confirm adequate capacity.
All-position, drive, and steer tires built for the extreme loads, tight turns, and harsh conditions of vocational trucking. Crack-resistant compounds with retreadable casings.

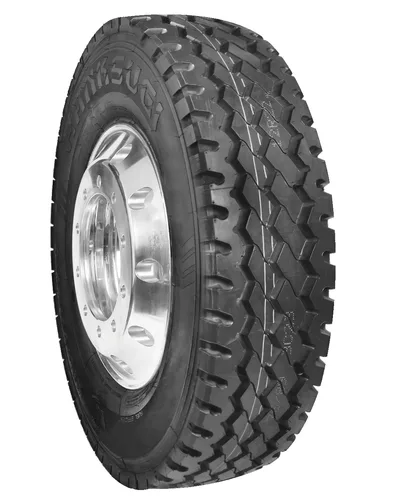

All-position mixed-use tire with crack-resistant compound and low heat generation. 16.5mm tread depth across major sizes. Ideal for dump trucks, mixers, and vocational fleets needing one tire across all positions.
Enhanced all-position tire with superior traction and crack-resistant compound for the most demanding vocational applications. High-speed rated for highway transit between job sites.
Open shoulder drive tire with stone grip protection, wide tread footprint, and crack/tear resistant compound. Provides traction for dump trucks and vocational vehicles transitioning between pavement and job sites.

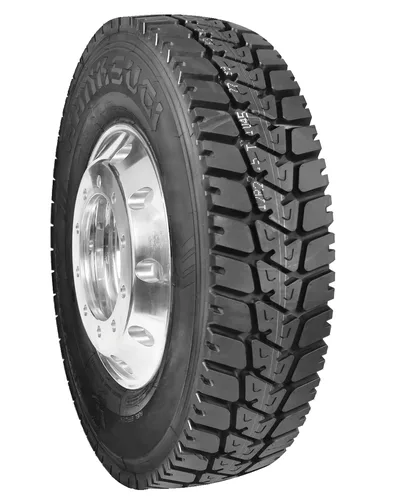

Aggressive traction drive tire with M+S pattern and anti-puncture laminations. Deep 20.6mm tread with excellent grip on poor road surfaces. Built for the hardest vocational drive axle service.
Each vocational application has distinct tire demands. The right tire depends on the vehicle type, the typical loads, the operating environment, and the ratio of on-road to off-road miles.
Dump trucks operate at or near maximum GVW when loaded, split time between paved highways and construction sites, and make tight turns at job sites that stress the steer tires. The HS64 all-position tire is the primary recommendation for dump trucks because its crack-resistant compound handles both the highway transit and the job site exposure, while its all-position versatility allows fleets to stock a single model across steer, drive, and tag axle positions. For dump trucks that operate primarily on rough aggregate surfaces, the HS68 on the drive axle provides additional traction and stone grip protection.
Concrete mixers are among the heaviest vocational vehicles, with loaded weights that push axle loads to maximum legal limits. The rotating drum shifts the center of gravity higher than a standard truck, creating additional lateral load transfer during turns. Mixer drivers also make tight turns at construction sites while the truck is at maximum weight -- a punishing combination for steer tires. The HS64 with its low heat generation characteristics handles the thermal stress of heavy-load, low-speed operation. For drive axles on mixers that frequently operate on muddy or unpaved surfaces, the HS58 provides aggressive traction with anti-puncture protection against the rebar and debris at concrete pour sites.
Refuse trucks are the toughest application in vocational trucking. A residential side-loader makes 800 to 1,200 stops per day, each requiring acceleration, braking, and steering input that generates heat and scrubs tread rubber. The loaded weight increases with each stop until the truck reaches the transfer station or landfill. Curb contact is constant and unavoidable. The HS64 addresses the refuse application with its crack-resistant compound that withstands the thermal cycling of hundreds of daily stops and a sidewall construction that absorbs curb strikes. The HS64+ KRATO MIX offers enhanced traction for refuse trucks operating in all-weather conditions with superior grip on wet residential streets.
Utility trucks -- bucket trucks, digger derricks, and service vehicles for power, gas, and communications companies -- operate in both urban environments and remote rural areas. These vehicles carry heavy mounted equipment that creates a high center of gravity, which amplifies lateral forces during turns. They frequently operate on soft shoulders and unpaved access roads. The HS64 all-position tire provides the versatility these mixed-use vehicles need. For utility trucks that spend significant time on unpaved roads accessing remote infrastructure, the HS68 on the drive axle adds traction on loose surfaces while maintaining adequate highway performance for transit between job sites.
One of the most practical decisions for vocational fleet managers is whether to standardize on a single all-position tire or use position-specific tires optimized for each axle. Both strategies have legitimate advantages.
For most vocational operations, the all-position strategy with the HS64 delivers the best combination of performance, simplicity, and cost control. Fleets that run a single vehicle type in severe conditions (e.g., a dedicated refuse fleet or a quarry dump truck operation) may benefit from position-specific tires on the most stressed axle positions.
Vocational trucks are harder on tires than any other commercial vehicle category. The combination of heavy loads, tight turns, frequent stops, curb exposure, and mixed-surface operation creates a maintenance environment where neglect is punished faster and more severely than in highway service. A disciplined tire maintenance program is the difference between getting acceptable tire life from vocational tires and burning through tires at a rate that makes the fleet unprofitable.
Vocational vehicles operate at higher percentages of their maximum load capacity than highway trucks, which means the tires are closer to their structural limits at all times. Under-inflation in vocational service is not just wasteful -- it is dangerous. A tire that is 15% under-inflated while carrying a near-maximum load generates extreme heat in the sidewall flex zone, which can cause a zipper rupture -- a catastrophic sidewall failure that happens suddenly and can injure anyone standing nearby. Check pressures daily before the first trip. Vocational tires typically run at higher pressures (110-120 PSI on steer, 100-110 PSI on drive duals) to support the heavy loads. Verify your target pressure against the load/inflation tables for your specific tire model and actual axle weights. Do not assume that the pressure on the truck door placard is correct for your actual operating weight -- vocational trucks are frequently loaded heavier than the placard specification.
Steer tires on vocational trucks wear faster than on any other truck type because the constant tight turns at heavy loads scrub the tread aggressively. Irregular wear patterns on vocational steer tires are common and indicate either misalignment, worn steering components, or both. Check steer axle alignment every 30,000 miles for vocational trucks -- more frequently than the 40,000-50,000 mile intervals used for highway and regional trucks. Replace worn tie rod ends, king pins, and drag links promptly, as play in these components allows the steer tires to oscillate during turning, which creates the cupping and diagonal wear patterns that shorten tire life. Rotating steer tires from side to side every 20,000-25,000 miles can equalize shoulder wear from directional turning bias (routes that turn more in one direction than the other).
Curb strikes are a fact of life in vocational trucking. Refuse trucks hit curbs on every residential route. Dump trucks contact curbs in tight construction areas. Concrete mixers navigate narrow streets with parked cars that force the truck close to the curb. Each curb strike damages the tire sidewall, and cumulative damage eventually causes structural failure. Train drivers to minimize curb contact where possible, but accept that some contact is unavoidable and select tires with reinforced sidewall construction. Inspect sidewalls daily for cuts that expose the casing cords, bulges that indicate internal damage, and abrasion patterns that suggest the tire is regularly contacting a fixed object. Remove any tire with exposed cords or visible bulging immediately.
Vocational tire casings can be retreaded, but the success rate depends on how well the tires were maintained during their original tread life. Casings that ran under-inflated, absorbed heavy curb strikes, or were run on flats are less likely to produce viable retread candidates. To maximize retread potential: maintain strict inflation discipline, remove tires at the correct tread depth before running into the wear bars, inspect and repair repairable punctures promptly, and store removed casings properly. The Hanksugi retread program evaluates casings from vocational service with the understanding that these casings have endured more stress than highway casings, and qualified inspectors assess whether the casing can safely support another tread life.
Find the right Hanksugi tire for your specific operation.
Cut-and-chip resistant tires for construction, quarry, and mixed-service operations on unpaved and rough road surfaces.
Low rolling resistance highway tires for interstate operations with SmartWay verification and maximum fuel efficiency.
Open shoulder drive tires for LTL, pick-up and delivery, and city distribution routes with frequent stops.
Versatile tires that perform across steer, drive, and trailer positions for fleets that need inventory simplicity.
Common questions about vocational truck tires, dump truck tires, concrete mixer tires, and refuse truck tires.
A vocational truck tire is designed for specialized commercial vehicles -- dump trucks, concrete mixers, garbage trucks, utility vehicles -- that operate in demanding, non-highway-dominant environments. These vehicles share common challenges: extreme load weights near GAWR limits, frequent tight turns, curb strikes, and transitions between paved roads and work sites. Vocational tires use stronger casing constructions, harder compounds, and reinforced sidewalls to handle these demands.
Most Class 8 dump trucks in the United States use 11R22.5 or 11R24.5 tires. The 11R22.5 is the most common size for standard dump trucks and concrete mixers. The 11R24.5 is sometimes used on tri-axle dumps and larger vehicles needing additional load capacity. Radial construction is standard for vehicles splitting time between job sites and public highways.
Refuse trucks destroy tires faster due to a combination of extreme factors: heavy loads at or above GAWR limits, 800-1,200 stops per day with constant acceleration and braking, tight turns at low speeds that scrub tread rubber, frequent curb contact, and operation on residential streets with speed bumps, potholes, and debris. The steer axle tires are particularly vulnerable because constant tight turns generate extreme lateral forces. Vocational-specific tires with harder compounds and reinforced sidewalls extend tire life significantly versus standard highway tires.
Yes, vocational tires can be retreaded if the casing is in good condition. Vocational service is harder on casings than highway service due to extreme loads, frequent impacts, and thermal stress. The key to retreadable casings is maintaining proper inflation throughout the tire's life, avoiding running on flats, and removing tires at the correct tread depth. Hanksugi vocational tires are built on retreadable casings with robust multi-layer steel belt construction designed to survive vocational duty cycles.
GAWR (Gross Axle Weight Rating) is the maximum weight a single axle is designed to carry. For vocational tire selection, each tire on an axle must be rated to carry its share of the GAWR at the operating inflation pressure. A tandem rear axle dump truck with 40,000 lb GAWR per axle and dual tires requires each tire rated for at least 10,000 lbs. Selecting tires with insufficient load capacity causes overheating, accelerated wear, and structural failure. Always verify tire load ratings against actual operating weights, not just the GAWR placard.
It depends on fleet size and complexity. All-position tires like the Hanksugi HS64 simplify inventory, allow rotation across positions, and reduce spare tire complexity. Larger fleets with dedicated tire shops may benefit from position-specific tires optimized for each axle. For most vocational operations, a high-quality all-position tire provides the best balance of performance, versatility, and inventory efficiency.
